Brand  : APMON
Product Details
Related product

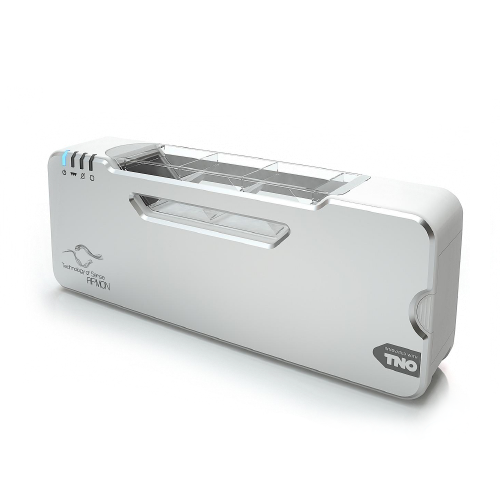

Sensor detects, counts and measures particles
Detectable Particle Sizes   25 μm - 1500 μm
Sample Times   5 minutes (longer interval possible)

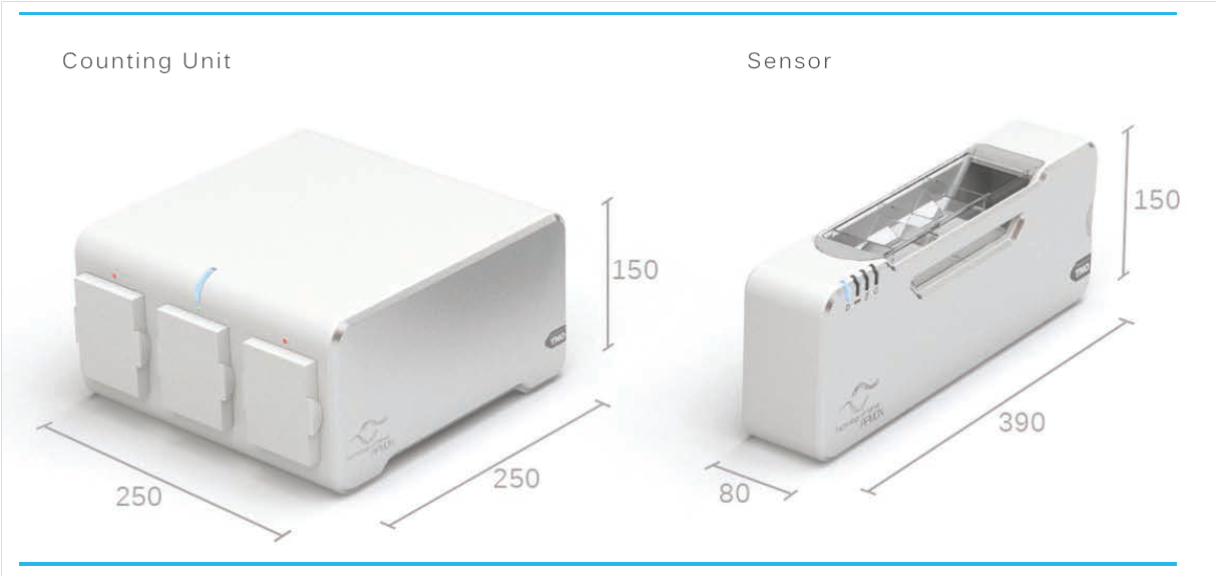

Size   390 x 80 x 150 mm (15.4 x 3.1 x 5.9 inches)
Weight    Approximately 5kg (incl. battery)
Power   Dual  110-230VAC 50/60Hz, adapter or battery 5VA
Battery Type   Lithium Ion Smart Battery, rechargeable inside Counting Unit
Battery Quantity   Included Two per sensor
Battery Operating Time   2-3 weeks
Communication Counting Unit   Bluetooth 2.0 800m free field or Ethernet
Optical Light Source   Laser Diode 406nm @ 5 mW
Method   Holographical Imaging
Laser Safety Classification   1m according to IEC 60825-1
Calibration   Automatic Internal Optical Calibration
Base Unit collects and analyses data and charges batteries
Size   250mm x 250mm x 150mm
Weight   4kg (with batteries recharging: 5kg)
Coincidence Loss   1%
Data storage   10,000 samples per Counting Unit
Power   110-230VAC adapter 150 VA
Cooling   Passive
Outputs   Ethernet cable UTP / RJ45
Battery Recharge   3 batteries per Counting Unit at the same time
Battery Recharge Time   10 hours maximum
Technical Specifications APMON
User Interface v 1.0
Tailor Made   Adjustable for every situation and requirements
Number of Size Channels   Flexible with a maximum of ten
Communication   Automatic report when PC receives data
Use of ethernet: approach from distance possible
Communication Protocol   Modbus TCP
Backup   Local Company Server
Languages   English, German, Dutch (tailor made possible)
System Requirements   Windows XP or Windows 7
Reports   Alarm date/time, exceeding standard
Particle size and count over time
Models   Industrial (standard: 3 Sensors per Counting Unit)
Medical (standard: 3 Sensors per Counting Unit)
Environment (Operating)   10 to 40 degrees Celsius (50 to 104 degrees Fahrenheit)
10 to 90% relative humidity, non-condensing
Enclosure Material Easy to clean:   Aluminium and plastics (80% ethanol cleaning possible)
Cartridge   Disposable dust-cartridge lasting 2-3 weeks, self-calibrating,
Patent Pending
Cartridge Material   PMMA
Packaging   Free of dust, cartridges are sterile
In the box 1 Sensor, 2 rechargeable batteries, Base Unit, 3 Cartridges,
Software, documentation
Warranty Instrument   3 years
