TONGHUI

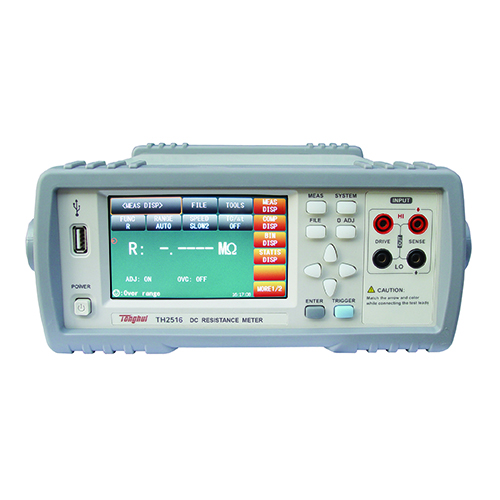

DC Resistance Tester
TH2516
Brand  : TONGHUI
Product Details
Related product
Features:
Maximum resistance accuracy:0.05%
Temperature precision:0.2*c
Minimum resolution:1uΩ
Low resistance test mode can effectively protect the DUT.
Multiple measurement combinations: R, LPR, T
24-bit, 4.3-inch and 4-wire touch LCD screen
LCD resolution: 480*272
Temperature compensation(TC)
Temperature conversion(ㅿt)
Max sample rate:50samps/sec
Offset voltage compensation(OVC)
Customer self-correction(0 ADJ)
Simultaneous output of comparison results of three 빈(OVER, PASS and bEEP)
Statistics function:Cpk, Cp
You can save and load 30 groups of parameter files.
You can save the screen information to a USB disk.
Provides convenience of saving measurement results with data magnetic field function
Automatically update operating software via USB HOST
Operating language: Chinese and English
Flexible and convenient file operating system
Online operation possible through Handler interface
Data communication with PC and remote control through interfaces such as RS232, USB HOST, and USB Device
