TONGHUI

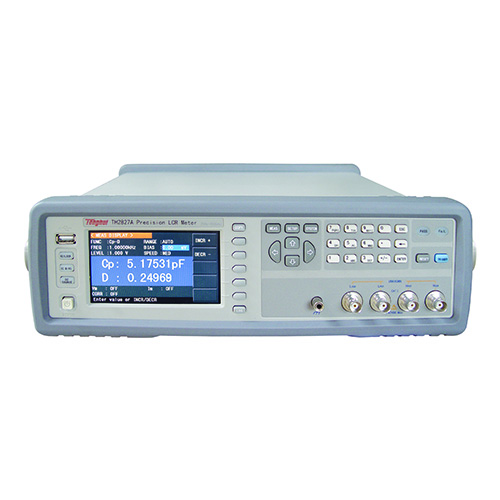

Precision LCR Meter
TH2827
Brand  : TONGHUI
Product Details
Related product
FEATURES:


4.3 inch TFT LCD display
Selectable Chinese and English operating interface
Maximum test frequency 1 MHz, resolution 10 mHz
Balance test function
Transformer parameter test function
Max test speed: 13ms/time
Automatic level control function about Voltage or electric current
Test signal level monitor function about Voltage or electric current

Built-in DC bias source

Large external DC bias source
10-point list sweep function
300, 500, 100 Internal resistance selectable
Built-in comparator: 10 ºó ºÐ·ù ¹× ºó Ä«¿îÅÍ
Internal file storage and external USB disk file storage
Test data can be saved directly to a USB disk
interface: RS232C, USB LAN, HANDLER, GPIB,DCI

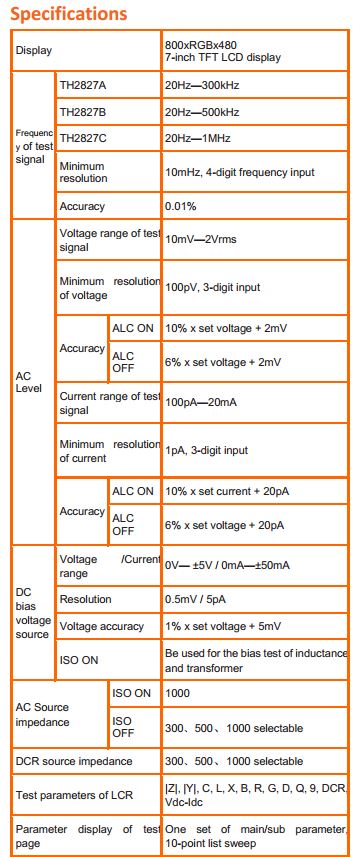

TH2827AïáÜö spec.JPG
