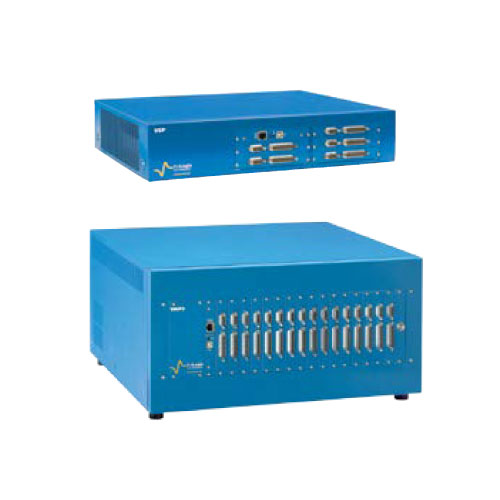

◈ Multi Potentiostat/Galvanostat with EIS system

1) Cell control :

Connection : 2, 3, 4 or 5 terminals (+ ground)

Compliance : 20 V adjustable from +/-10 V to 0-20 V

Maximum current : +/- 400 mA continuous

Max. potential resolution : 300 μV on 20 Vp down to 5 μV on 200 mV

Max. current resolution : 0.004% of the dynamic range 760 pA

Accuracy (DC) < 0.1% FSR*

Rise time (10% - 90%) < 2 μs (No load)

Acquisition time 20 μs

CooledPbs Photoconductive element

2) Current measurement

Automatic on every range +/- 10 μA to +/- 400 mA (7 ranges)

Maximum resolution : 0.004% of the range

Acquisition speed : 200000 samples/second

Accuracy (DC) : < 0.1% FSR*

3) Potential measurement

Ranges : +/-2.5 V, +/-5 V, +/-10 V, +/-10 V adjustable

Maximum resolution : 0.0015% FSR*, down to 75 μV

Acquisition speed : 200000 samples/second

Accuracy (DC) : < 0.1% FSR*

4) Electrometer

Inputs : 3 potential measurements

Impedance : > 1012 ohms in parallel with < 20 pF

Bias current : < 5 pA

5) Impedance

Frequency range : 10 μHz to 1 MHz (accuracy: 1%, 1°)

Amplitude : 1 mVpp to 1 Vpp 0.1% to 50% of the current range

6) Computer Interface

Ethernet (TCP/IP) or USB2.0

7) Electrochemical techniques

Voltamperometric techniques

Impedance Spectroscopy

Pulse Techniques

Techniques Builder

Manual Control

Ohmic Drop Determination

8) Electrochemical Applications

Battery Testing

Photovoltaic/Fuel Cells

Corrosion

Custom Applications

Special Applications
