Metallurgical Microscope
Metallurgical Microscope

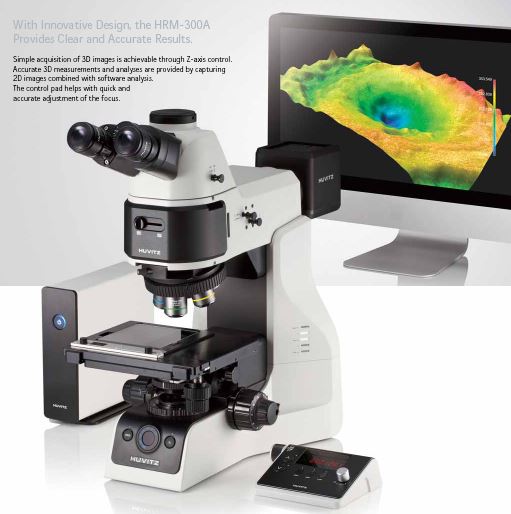

HRM-300
Brand  : HUVITZ
Product Details
Related product
Specifications ¡¡ ¡¡ ¡¡
¡¡ HRM-300 HRM-300M
Optical System Infinity-Corrected Optical System ¡¡
Illumination Reflected / Transmitted Reflected
Base unit Focus Stroke range: 29.5 mm
Coarse and Fine focusing knob
Coarse: 17.7 mm/revolution
Fine: 0.1 mm/revolution (1 §­ scale)
Upper limit stopper, Torque adjustment ring
Electronics Integrated power supply for 12V 100W light adjustment.
LED voltage indicator
IL switch and ECO switch
Reflected Illumination BF/DF HR3-RLI: Kohler illumination system
Brightfield / Darkfield, Normaski DIC, Polarized light
BF HR3-RLIBI: Kohler illumination system
Brightfield, Normaski DIC, Polarized light
Light source HM-LH100: 12V 100W halogen
Transmitted Illumination ¡¡ Kohler illumination system  -
Brightfield
Built-in filters (ND6, ND25, LB)
Light source HM-LH100: 12V 100W halogen
Condenser Abbe HR-ACD: N.A 1.20  -
Long-working HR-LWCD: N.A 0.65
Stage 3X2 inch HR-ST3R: glass plate, specimen holder
Size 180(W) X 160(D) mm
Stroke 79(X) X 55(Y) mm
4X4 inch HR-ST4R: metal plate, glass plate
Size 210(W) X 170(D) mm
Stroke 104(X) X 102(Y) mm
6X4 inch HR-ST6X4R: metal plate, glass plate
Size 299(W) X 193(D) mm
Stroke 154(X) X 104(Y) mm
6X6 inch HR-ST6R: metal plate, glass plate
Size 300(W) X 280(D) mm
Stroke 153(X) X 153(Y) mm
Observation Tube Trinocular HM-WETR: Erect type(F.N 25), Incline angle 20¡Æ
Binocular HM-WEBI: Erect type(F.N 25), Incline angle 20¡Æ
Eyepieces ¡¡ HM-EPA10X: 10X(F.N 25), Diopter adjustable
Reticle Crosshair, X-micrometer, XY-micrometer, Grid
Revolving Nosepiece BF/DF HM-D5BDRE: 5-position Nosepiece
¡¡ for Dark-field objective lens with DIC slot
Revolving Nosepiece BF/DF HM-D5BDRE: 5-position Nosepiece
for Dark-field objective lens with DIC slot
BF HM-D5RE: 5-position Nosepiece
for Bright-field objective lens with DIC slot
Dimensions ¡¡ Approx. 246(W) X 572(D) X 514(H) mm
Weight ¡¡ Approx. 19 kg
3D Profile Module for HRM-300A
Mechanism ¡¡ High-resolution 5-phase stepping motor, Long cross-roller guide system
Stroke  ¡¡ Distance 30 mm ¡¡
Resolution  ¡¡ 0.01 §­ ¡¡
Repeatability  ¡¡ 0.5 §­ ¡¡
Max Speed  ¡¡ 1.4 mm/sec ¡¡
Dimensions  ¡¡ 240(W) X 157(D) X 202.5 (H) mm ¡¡
Weight  ¡¡ 5 kg ¡¡
Load capacity  ¡¡ 15 kg ¡¡
