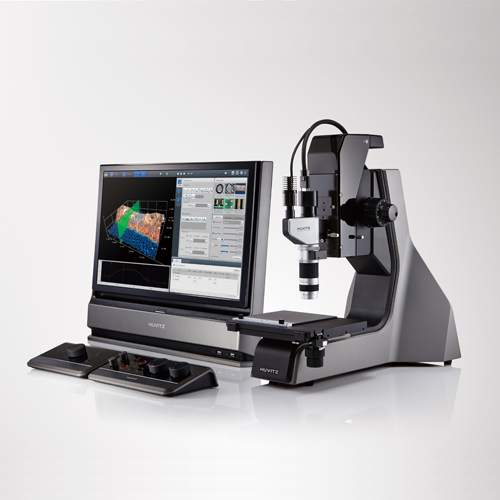

Digital Microscope
디지털현미경
HDS-5800
Brand  : HUVITZ
Product Details
Related product



MODEL Specifications
Zoom Lens
25x~200x
(HDS-2520Z)
Total magnification 25x~200x
Field of view 20.27mm~2.53mm
Working distance 56.0mm(All Zoom)
Main
Controller
(HDS-MC)
Camera Imaging device 1/1.8inch 2.11Mega-pixel CCD Sensor
Total number of pixels 1,688 (H) x 1,248 (V) approx. 2.11M pixels
Scan method Progressive scan
Frame rate 20 fps
Resolution 1,600(H) x 1,200(V)
Electronic shutter Auto, Manual(4~1/20,000)
White balance Auto, Manual, One push
Image adjustment Gamma correction, Color correction, Edge enhancement
LCD monitor Display size 21.5" [21.46 inches(545.22mm) diagonal]
Panel size 495.6(H) x 292.2(V) x 10.2(D) mm (Typ.)
Pixel pitch 0.2475mm x 0.2475mm
Number of pixels 1,920 x 1,080 (1,080 vertical by 1,920 horizontal pixel array, FHD)
Display color 16,7M colors with A-FRC (Advanced frame rate control)
Brightness 250 cd/m2(Center 1 Point, Typ.)
Contrast ratio 1,000 : 1 (Typ.)
Viewing angle 178°(H), 178°(V) (Typ.)
Storage capacity 750GByte (including 40GB reservation area)
Image format BMP(non-compressed), JPEG(compressed), PNG(compressed),
TIFF(compressed)
Light source LED 5V 1A high lumen LED
Color temperature 6,300K
Dimensions Controller(main unit) : 547.6(W) X 419(H) X 183.4(D) mm
Camera unit : Ø37(di) X 48.2(H) mm
Console : 235.3(W) X 51.1(H) X 141.9(D) mm
