Measuring Division
  >
Coordinate Measuring Machine (Contact)

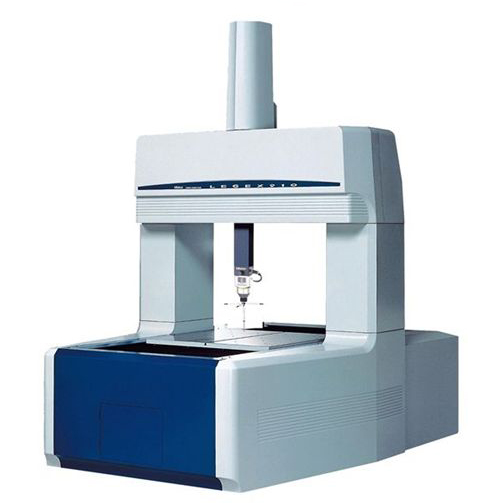

LEGEX Series / MITUTOYO
Brand  : MITUTOYO
Product Details
Related product

1. Features

1) 3D measuring machine equipped with both the highest speed and precision.

2) Bridge fixed moving table structure

3) Separation of X-axis drive and Y-axis drive

4) Increase the accuracy correction temperature to about 10 times the existing

5) Vibration suppression technology (internal vibration measures)



2. Models and Specifiacations

Model

　

LEGEX322

LEGEX574

LEGEX774

LEGEX776

LEGEX9106

LEGEX12128

Measuring
Range

X-axis

300mm

510mm

710mm

710mm

910mm

1210mm

Y-axis

200mm

710mm

710mm

710mm

1010mm

1210mm

Z-axis

200mm

460mm

460mm

610mm

610mm

810mm

Max. Speed

200mm/s

Resolution

0.0001mm

Meas. Type

Ultra Precision Linear Encoder

Accuracy MPEe(㎛)

0.8+2L/1000

0.35+L/1000

0.6+1.5L/1000

Max. Acceleration

850m㎨

1000m㎨
