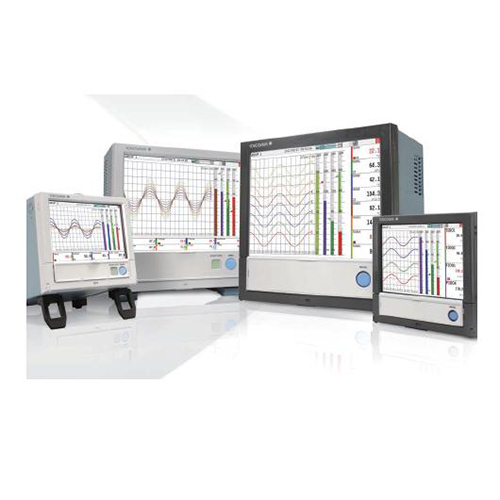

1) model

 GP10, GP20 (portable handle is installed as standard)

 GX10, GX20 (installation type, without handle)

2) Variable multi-channel configuration

 GP10, GX10 (10ch, 20ch, 30ch)

 GP20, GX20 (10ch ~ 100ch)

3) memory

 Internal memory (500MB): Storage capacity for up to about 1 month when saving event data files based on 1 second sampling interval

 External memory SD card (compatible up to 32GB)

 The measurement data stored in the internal memory is automatically sent to the SD card, copied, and stored in duplicate.

 External memory USB (manually dragged and saved)

4) Screen size

 12.1 inch (GP20, GX20)

 5.7 inch (GP10, GX10)

5) Touch screen application:

 It adopts the latest smart 2 point touch screen, and you can take notes directly on the screen with a stylus pen or a finger given as a standard.

6) It can be used by connecting a mouse and keyboard like a PC (optional)

 7) Communication: Basic: Ethernet communication

     Options: RS-232C (1C2) / RS-485 or RS-422 (1C3) / Modbus (1RTU)

 8) Input module

 A) GX90XA (Analog input module-10 channels)

  -Input specifications

  -Scan interval (100/200/500ms, 1/2/5S)

  -Power consumption (0.7W)

  -Terminal type (screw or clamp)

  B) GX90XD (digital input module-16 channels)

  -Input specifications

  -Power consumption (0.7W)

  -Terminal type (screw or clamp)

 C) GX90YD (digital output module-6 channels)

  -Output specifications (relay contact-C contact)

  -Power consumption (1.4W)

  -Terminal type (screw or clamp)
