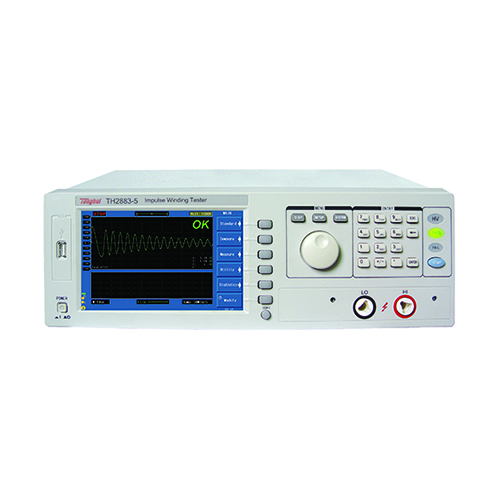

Impulse Winding Tester

TH2883

Brand :

TONGHUI

Product Details

Related product

Features

■ The first provider of impulse winding tester from low voltage

of 30V to high voltage of 10kV, single channel to multichannel

in this industry (Max.:8 channels)

■ First winding tester compatible with LXI standard

■ Impulse voltage of 30V~10kV

■ Minimum inductance value of winding that can be tested: 1uH

■ 65k color 7” TFT wide display screen

■ Up to 200Msps waveform sampling rate

■ Maximum measuring speed: 6meas/sec

■ Storage depth of 6k Bytes

■ High bandwidth analog acquisition circuit

■ High-fidelity corona extraction algorithm (patent technology)

■ Four waveform comparison methods

■ Automatic storage of instrument parameters

■ Measurements on voltage, time and frequency

■ Amplification, stretch and movement of the waveform for

accurate display

■ Multi-sample average, average processing of 32 standard

waveforms

■ Destructive testing for your correct choose of voltage

■ Use demagnetized impulse to ensure the conformity of tested

waveforms

■ Login of different user right for easy management

■ 20 groups of instrument files can be stored and automatically

loaded

■ Screen information can be stored in USB disk
