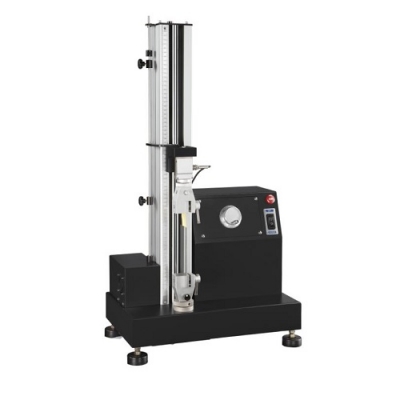

Precision design of small model type can save lab area. tensile testing machine has light weight and small size which will not occupy space. UTM machine has displacement and test speed setting which is good choice for small type tensile and compression of specimen.



Tensile tester uses servo motor to drive the machine which has high precision. The force sensor has memory function. Tensile test machine does not need to re-calibrate load cell which after change. The power supply of tensile tester is 100~220V which is very easy to acquirement.



Tensile strength tester has to connect with computer which function will be more completely. Special test software can use on Windows 7 /Window 8 to control the machine. Universal tensile testing machine can do tensile and peeling test. The software is very easy operation with multi-languages, various units of measurement are available, testing screen is selective to display data, graph at the same time with completely test data analysis and have more completely analysis and save file.



A wide range of accessories such as grips, fixtures, chambers and high travel extensometers are available to match most applications and test samples.



Standard: ASTM E4, ASTM D-76, DIN5122, JIS B7721/B7733, EN 1002-2

Model	QC-528M1(M2)
Max. capacity	500 N
Test stroke	Test stroke 400 mm(without grips)
Stroke resolution	0.05mm(0,005mm)
Speed range	3 ~ 600 mm/min（digital setting）
Hardware protection	Up/down limit, emergency stop button.
Motor type	Servo motor
Power supply	Single phase 110~240VAC，5A
