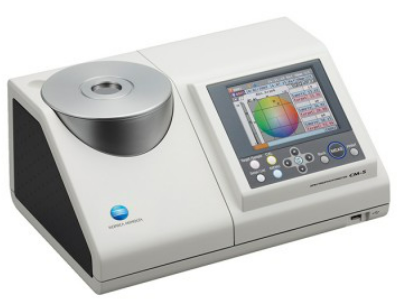

◈ CM-5
1) Illumination/viewing system : Reflectance: di:8°, de:8° (diffuse illumination: 8° viewing)
Transmittance: di:0°, de:0°
2) Integrating sphere size : Ø152 mm
3) Detector : Dual 40-element silicon photodiode arrays
4) Wavelength range : 360 nm to 740 nm
5) Wavelength pitch : 10 nm
6) Half bandwidth : 10 nm
7) Light source : Pulsed xenon lamp
8) Measurement/ illumination area : Reflectance : LAV: Ø30 mm/Ø36 mm; MAV (optional): Ø8 mm/Ø11 mm;
SAV (optional): Ø3 mm/Ø6 mm
9) Inter-instrument agreement : Transmittance : Ø20 mm
10) Display : 5.7-inch TFT color LCD
11) Interfaces : USB 1.1, RS-232C standard
12) Color space : *a*b*, L*C*h, Hunter Lab, Yxy, XYZ, Munsell
13) Storable data : "Measurement data: 4,000 measurements;
Target color data: 1,000 measurements"
14) Power : AC 100 to 240 V, 50/60 H
15) Size : 385 (W) × 192 (H) × 261 (D) mm
16) Weight : 5.8 kg
