Coordinate Measuring Machine
Coordinate Measuring Machine (Contact)
Vertex, Excel / Micro-vu
Brand  : MICRO-VU
Product Details
Related product

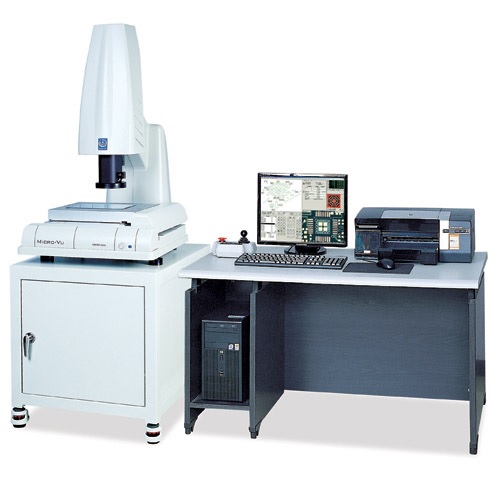

1) Vertex 250/300

Vertex is a model that can easily and accurately measure and analyze small and medium-sized parts. It is designed in a future-oriented way such as “Mono Rail” type Linear Bearing, Dual Encoder DC servo motor and sophisticated electronic devices, up to 1,400mm/s speed. Measurement is possible.



Vertex adopts a precision zoom lens that minimizes the difference between magnifications, and supports the latest measurement software “InSpec”, which includes advanced lighting control functions that automatically adjust brightness, auto focus and various sophisticated edge detection tools. .



In addition, Vertex is a model that can meet the needs of various fields as it can be operated in a wide range by adding contact probes and rotary tables as options.



  A) Measuring Range

    Vertex250 : 250 × 160 × 160mm ( X , Y , Z )



  B) Application

    중,소형 PCB, 중,소형 LCD 부품, 리드프레임 등 반도체 부품, 플립 칩, Stamping 부품, 금형 부품,

    Plastic 사출품, 의료기기, 오-링 및 가스켓

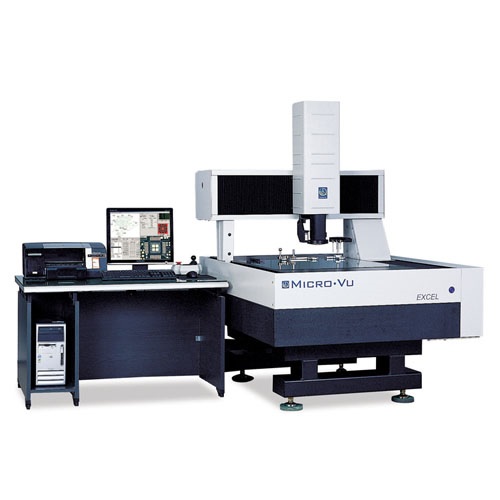

2) Excel Small / Medium & Large / Extra Large

Excel is a model that can easily and accurately measure and analyze medium and large-sized parts.

It is designed in a future-oriented way such as “Mono Rail” type Linear Bearing, Dual Encoder DC servo motor and sophisticated electronic devices.

It can measure up to 1000mm/s speed. Excel adopts a precision zoom lens that minimizes the error between magnifications, and supports the latest measurement software “InSpec”, which includes a high-tech lighting control function that automatically adjusts brightness, auto focus, and various sophisticated edge detection tools.



Excel is a model that can meet the needs of various fields by adding a contact probe and a rotary table as an option for wide operation.



   A) Measuring Range

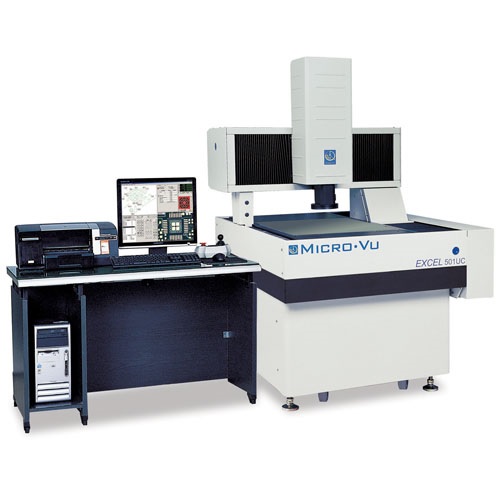

     Excel Small :  500 × 400 × 160(or 250)mm ( X , Y , Z )

     Excel Medium&Large  :  650 × 650 × 160(or 250,400)mm ( X , Y , Z )

                                      1050 × 1050 × 160(or 250,400)mm ( X , Y , Z )

                                      1650 × 1050 × 160(or 250,400)mm ( X , Y , Z )

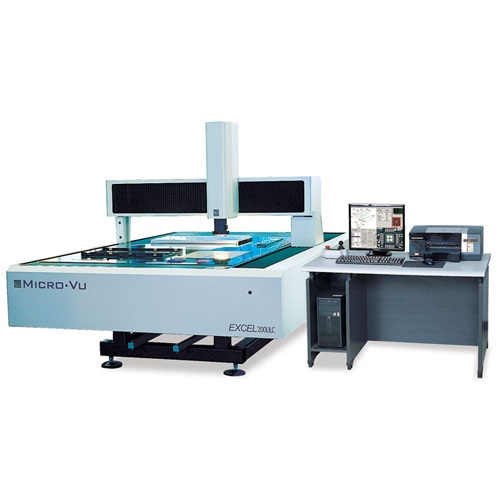

     Excel Extra Large :  2000 × 1250 × 200mm ( X , Y , Z )

                               2500 × 1600 × 200mm ( X , Y , Z )



  B) Application

    PCB, Artwork Film, LCD parts, Bare Board, Etched Parts, Sheet Metal, Stencils, PDP Parts, mold parts, plastic injection products,

    O-rings and gaskets
