METREL

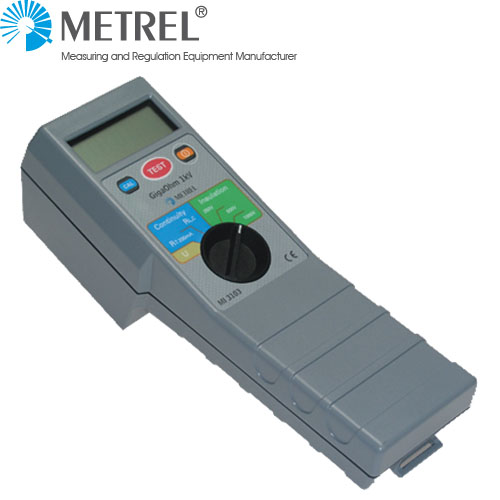

Insulation resistance meter
MI-3103
Brand  : METREL
Product Details
Related product

GigaOhm 1kV MI03103





Key Feature

Insulation Resistance

-Three test voltages (250, 500 and 1000V) are generated to provide the test required for all installations

-A very wide range of measured insulation resistance (up to 2 GW) allows periodic analysis of changes in insulating material.

-Automatic discharge of test equipment after test completion







continuity

-Automatic polarity change 200mA measurement

-Automatic calibration of test leads (up to 5W) eliminates lead resistance

-Low current resistance measurement for testing of electric motors, induction coils, transformers, etc.

RMS voltage and frequency

-A warning is given if a dangerous voltage is detected.

-Auto power off







Characteristic

-3 test voltages (250, 500, 1000V combined)

-Wide range of insulation resistance measurement (0.001M ~2000M)

-Conduction test function

-Voltage measurement (0~600V AC/DC)

-Rugged case
