Reliability Tester
UTM

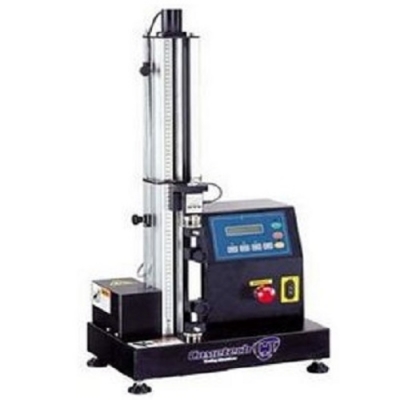

QC-508E 100kgf
Origin  : ´ë¸¸
Manufacturer  : Cometech
Product Details
Related product
Description
The table type tensile (compression) testing machine has great configurations of volume planning and operation. With servo motor and sophisticated ball screw which is suitable for under 5KN test. Standard equipped with sophisticated hand wheel which can be in precision and it convenience to calibration and adjust displacement. According to the length of specimen and the elongation have different stroke for optional. Also, we provide completed fixture planning which can proceeding variety of test method. This model is using special testing software M1F which is used Windows 7/8 /10 of Person computer. It can do tensile test, compression test, bending test, peeling test, hold tensile (compression) and all kind of test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which can do variety of material analysis or storage after finished test. Multiple control systems can choose special displayer, M1F, without connect computer (stand-alone) that can capture fast and effective test data.



Industry£ºRubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Packaging, Medical, Architecture



Standard: ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228



A wide range of accessories such as grips, fixtures, chambers and high travel extensometers are available to match most applications and test samples.
Model QC-508E
Max. Capacity 5 kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)

Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 31 bits
Force Precision 1/100,000
Test stroke(w/o grip) 800mm
Stroke resolution 0.0001mm
Space between columns ¨ª70mm
Speed range 0.2 ~ 1000mm/min (Can be set by computer digital)
PC-Port RJ45(TCP/IP)[software optional]
Data sampling rate Max.400Hz
Motor type Servo Motor
Feature ¡ØAutomatic reading of load cell feature information

¡ØAutomatic reading of displacement sensor feature information

¡Øforce display, displacement display, time display, stress display and strain display

¡ØExternal analog input (2-channel simultaneous reading of voltage or current)

¡ØTest force automatically zero

¡ØTest force self-defined calibration

¡ØBreak detection

¡ØAutomatic return

¡ØForce overload protection
Power Supply Single phase 200 ~ 240VAC£¬5A
Dimension of Machine 50¡¿ 53 ¡¿ 145cm
Weight of Machine80 kg
