X-Ray 장비

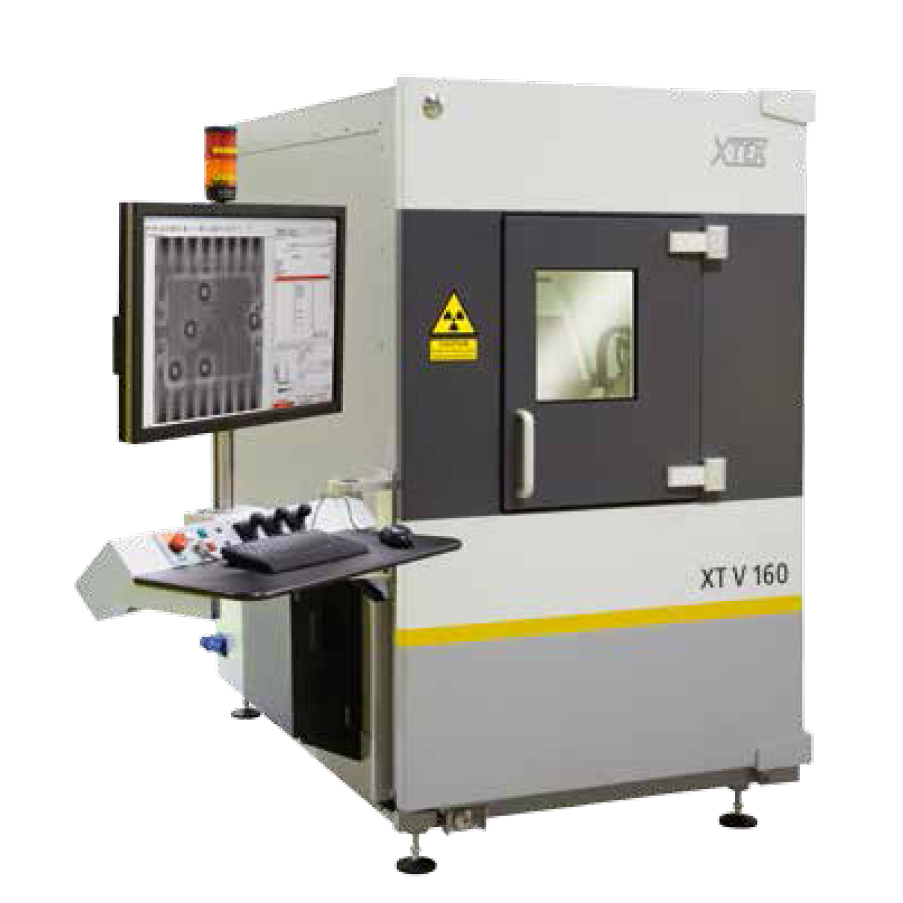

XT V 160

Brand :

NIKON

Product Details

Max kv:	160 kV
Max. electron beam power:	20W
X-ray source:	Open transmission target tube
X-ray spot size:	1 μm
Defect recognition capability:	500 nm
Geometric magnification:	2.5x -2,400x
System magnification:	Up to 36,000x
Imaging system (Standard):	1.45 Mpixel 12-bit camera with dual field 4"/6" image intensifier
Imaging system (Option):	Varian 1313 or 2520 Digital flat panel
Manipulator:	5-axis
Rotate axis:	Included
Tilt:	0 - 75 degrees
Measuring volume:	Largest square in single map 406x406 mm (16x16")
Measuring volume:	Absolute max 711x762 mm (28x30")
Max. sample weight:	5 kg (11 lbs)
Cabinet dimensions:	1,225 x 1,810 x 2,145 mm (48x71x84")
(WxDxH )	(incl. monitor bracket and lamp tower)
Weight:	1,935 kg (4,266 lbs)
Radiation safety:	<1μSv/hr at the cabinet surface
Control:	Inspect-X control and analysis software
Automated inspection:	Included
Computed Tomography:	Optional
Primary applications:	Real-time and automated inspection of electronics (BGA, μBGA, flip-chip and loaded PCB boards)
